Revolutionizing Industrial Communication in the Era of Industry 4.0

Hilscher's netX100/500 series represents a cutting-edge solution for industrial automation, designed to excel in the realms of Industry 4.0 and IIoT applications.
•   Empowered by a high-performance ARM 926EJ-S CPU operating at speeds of up to 200 MHz.
•   Supports a variety of industrial communication protocols, facilitating seamless communication with multiple devices.
•   Provides comprehensive peripheral functions and serial interfaces (such as UART, USB, SPI, I²C).
•   Offers a complete Single Pair Ethernet (SPE) solution, featuring built-in PHY, packet exchange, and dual-port memory.
•   Flexible solutions tailored for industrial automation, smart manufacturing, and robotics applications.

The netX100/500 series stands out as a highly efficient and versatile System-on-Chip (SoC) for communication, specifically designed for applications in Industry 4.0 and the Industrial Internet of Things (IIoT). Leveraging full-duplex communication transmission technology, this series enhances communication efficiency and minimizes data transfer latency.
Highly Integrated System Architecture The series adopts a highly integrated system architecture housing a 32-bit ARM 926EJ-S CPU with a remarkable operating speed of 200 MHz. It features built-in 144 KB RAM and 32 KB ROM, supporting external expansion with SDRAM, SRAM, or FLASH.
Flexible Communication Control With four communication channels supporting various communication protocols, including PROFINET, EtherNet/IP, Modbus TCP, the netX100/500 series showcases intelligent communication ALUs capable of independent protocol processing, thereby enhancing communication efficiency.

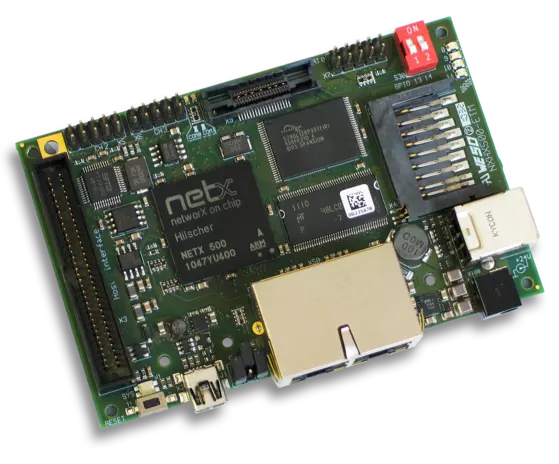

(Image - Hilscher NXHX 500-ETM Development Board)

Applications Hilscher's netX100/500 series finds diverse applications in Industry 4.0 and IIoT, including:
•   Industrial Automation: Ideal for optimized communication and maximum data throughput in industrial automation applications.
•   Smart Manufacturing: The netX solution adapts seamlessly to scenarios of intelligent manufacturing, supporting multiple communication protocols and flexible communication interfaces, while also embracing IIoT.
•   Robotics: The integrated graphic controller and robust processing capabilities make netX suitable for addressing communication and control needs in robotics applications.
•   Communication Control: netX100/500 boasts a central data switch and four freely configurable communication channels, effectively tackling complex communication requirements.
•   Multi-Protocol Communication: Offering multi-protocol communication support, including real-time Ethernet, to meet diverse communication demands across various applications.
Conclusion:
Hilscher's netX100/500 series stands as a leading-edge solution, providing a flexible, efficient, and widely applicable answer to the challenges of industrial automation. Representing the forefront of Industry 4.0 communication technology, this series excels with its highly integrated system architecture and adaptable communication control. Beyond addressing diverse application scenarios, netX100/500 actively contributes to the continuous development of communication technology in the industrial domain, enabling intelligent and efficient management of industrial equipment.
